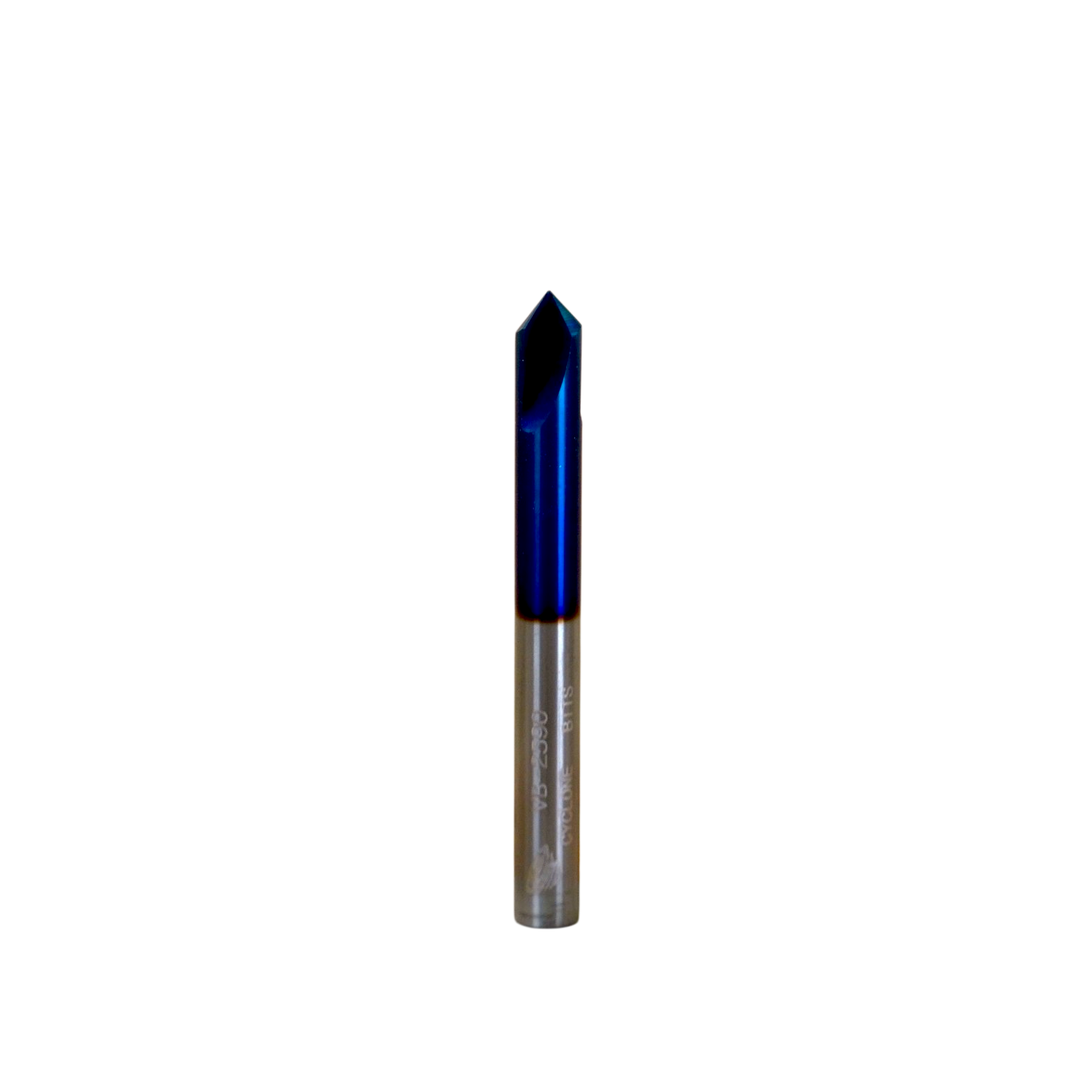

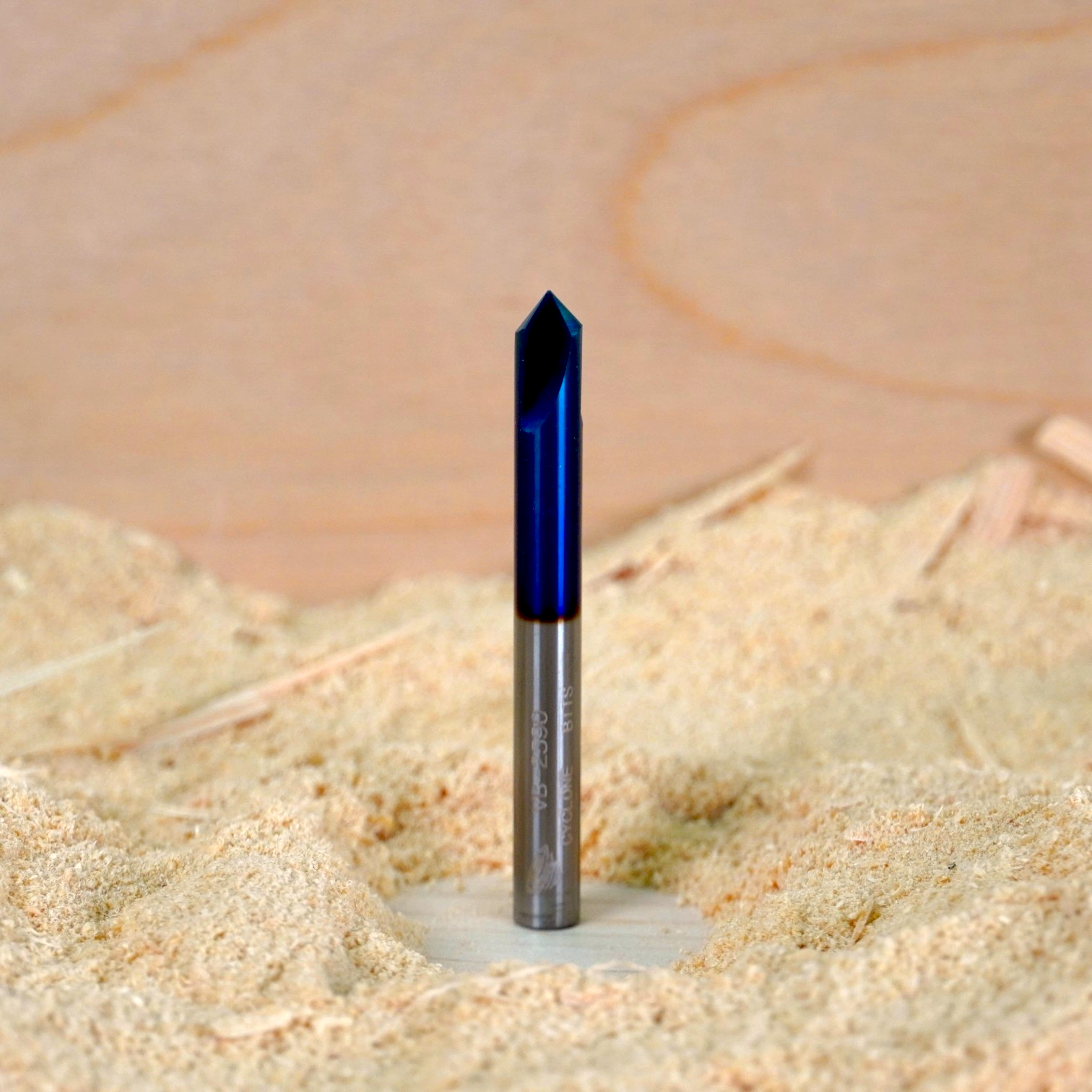

VB-2590 90deg V-Bit

90° V-Bit
Tungsten Carbide • Nano Blue Coated

Overview
Built for bold engraving, chamfering, and decorative bevels. The 90° angle creates wider cuts than sharper V-bits, making it ideal for readable text, sign work, and edge detailing. Nano Blue coating helps improve heat resistance and tool life on spindle-driven CNC machines.

Best For

• Bold V-carved lettering
• Chamfers and edge breaking
• Decorative bevels
• General sign work

Why Choose It

• Wide angle for bold, readable cuts
• Great for chamfers and edge detail
• Clean cutting with good chip evacuation
• Versatile general-purpose V-bit

Starting Parameters
Conservative starting values. Adjust for material, machine rigidity, and cut depth.

• Spindle: 14,000–20,000 RPM
• Feed: 80–180 IPM
• Plunge: 30–60 IPM
• Depth Strategy: Reduce depth per pass in harder materials or longer jobs

Compatible Materials

• Hardwood
• Softwood
• MDF
• Plywood
• Plastics

Specifications

• Tool Type: V-Bit
• Included Angle: 90°
• Flutes: 3
• Shank Diameter: 1/4"
• Overall Length: 2.36"
• Material: Tungsten Carbide
• Coating: Nano Blue

Notes

• Cutting width increases quickly with depth
• Ideal for chamfers, V-carving, and bold lettering
• Not intended for deep pocketing
