Control Cable

Do you need a PWM or a Modbus cable for your spindle setup? Here it is!

We've put in tons of research into finding the highest quality connectors and spent a great deal of time perfecting the construction of our PWM/Modbus cables.

What's included?

12' shielded cable

with VFD\PE connectors designed perfectly for our Systems
with Controller connectors designed perfectly for the machine specified.

CNC Controller Guides

Fox Alien uses our JST-XH to GX12 6-pin

AVID uses the AMP 14-pin to GX12 6-pin connector

Carbide3d's Shapeokos 3, 4 & Pro require the Molex to 6 Pin Connector

Carbide3d's Shapeoko 5 requires the GX12 6 Pin connector w/ Pigtail Connector to GX12 6 Pin

Onefinity's BlackBox controllers requires Modbus Female Breakout Board to GX12 2-pin

Onefinity Elite will require GX12 6-pin to GX12 6-pin

Longboard will require Generic Ferrule w/ Digital PWM converter to GX12 6-pin

Super LongBoard will require Modbus Generic Ferrule Connectors to GX12 2-Pin

PwnCNC ATC Pneumatics Enclosure Cable requires GX12 5-Pin to GX12 5-pin

Nearly all other brands or machines will need either:

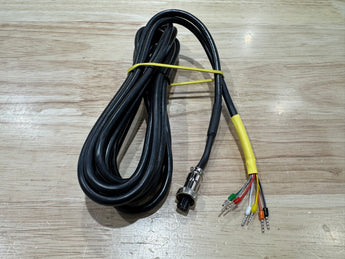

Generic Ferrule Connectors to GX12 6-pin
GX12 6-pin connector w/ 18" cable inlet to GX12 6-pin

depending on if you want the leads attached or easily detached.

* Final product may be black or white cabling depending on inventory levels.
** Current available options are GX12 6 pin-pwm, GX12 5-pin, and GX12 2-pin modbus.

Found errors in documentation.

In order to get the spindle to work with my Altmill using Gesender I had to make two changes to your instructions. To keep the spindle running I had to change $340 to 0 (Zero). At 1 it would start and after a few seconds shut off with Error 14. To get the spindle to run in CCW I had to change $466 to 2. With these changes the spindle seems to running fine, but I have yet to run any jobs. The tubing you supply will not fit through the tube nuts on the spindle. For use in the real world I think the power cord should be about twice as long.

Spindle system

Pretty dang good. I’m very pleased.

Customer Service

PwnCNC went above and beyond with my request and it is truly appreciated. Thank you.

Wires were reversed

The 25 pin control cable had the wires reversed. I found a coment online that mentioned that they may be wrong. After reversing the wires it worked fine.
