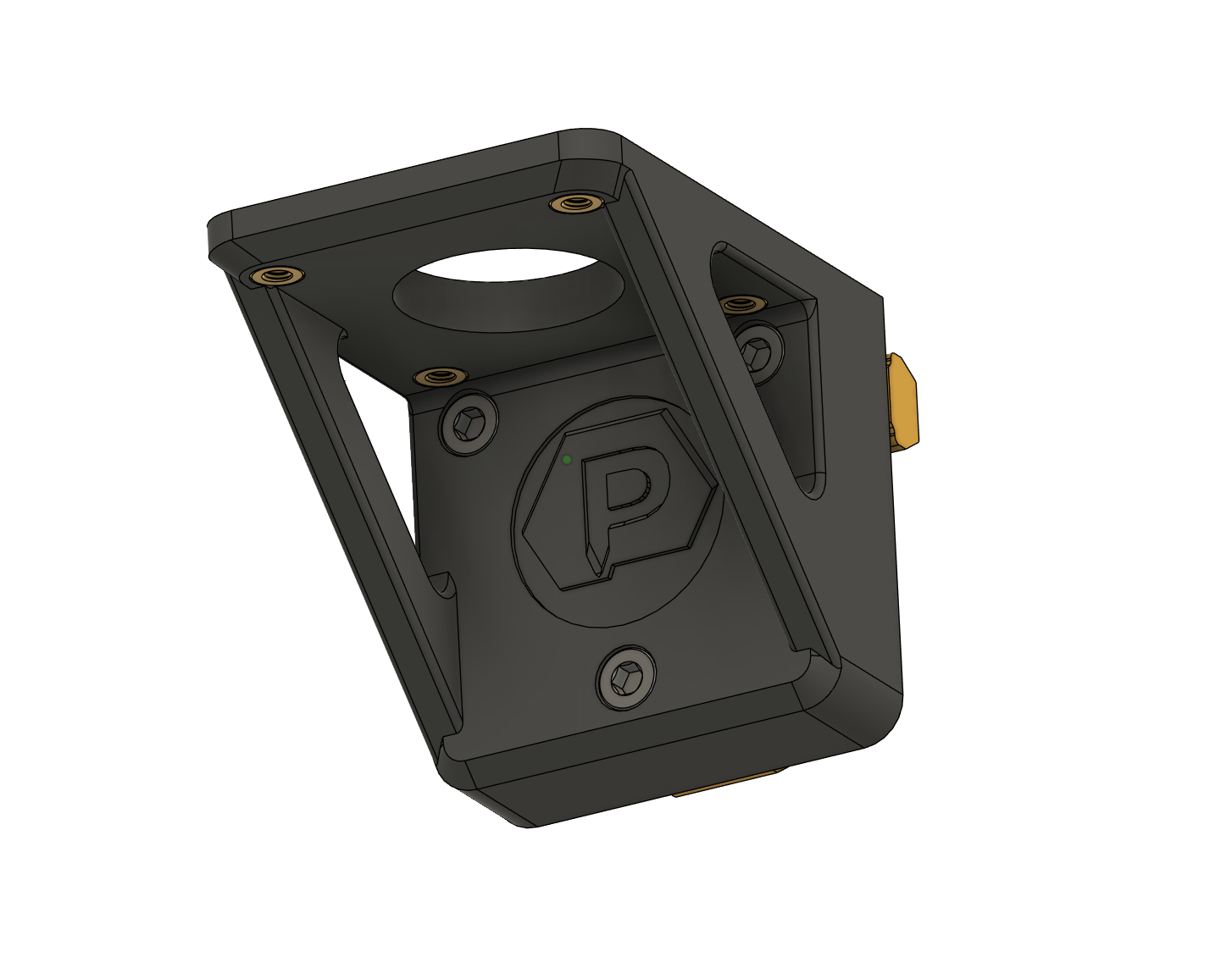

90° Front Mount for Magnetic Tool Cups

Mount your magnetic ISO20 tool cups exactly where they are easiest to reach.

The 90° Front Mount for Magnetic Tool Cups was designed for the PwnCNC Dominator Pro and allows our magnetic tool cups to be mounted directly to the front 40-series extrusion of the machine. This creates a clean front-mounted tool station that keeps your active ATC tools visible, accessible, and easy to manage before starting a carve.

This mount is ideal for customers who want to use a small number of active tool positions at the front of the machine while keeping a larger numbered tool library stored elsewhere on the machine.

Designed for Front-Mounted ATC Tool Positions

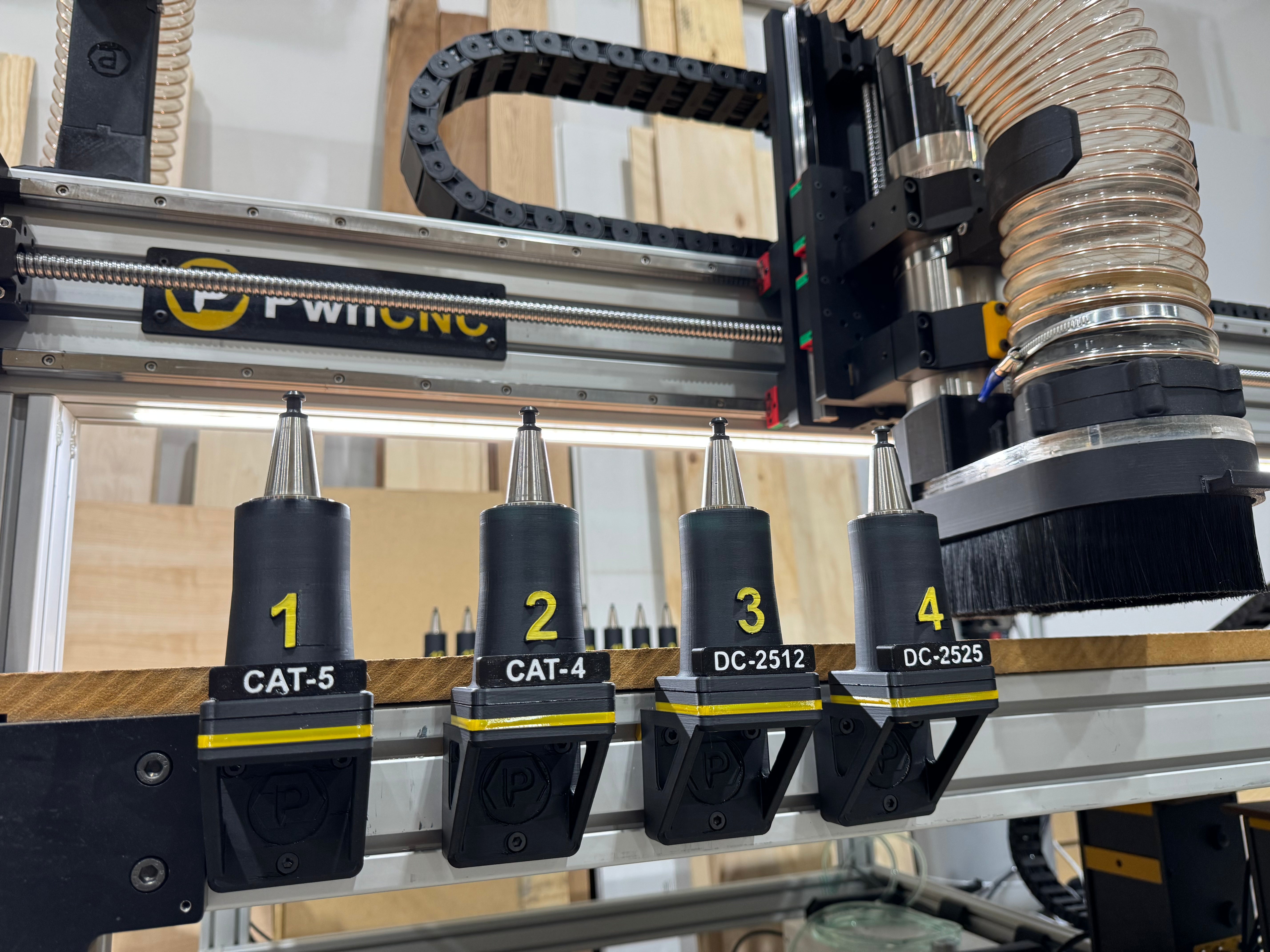

When paired with our Numbered Magnetic Tool Cups, these mounts make it easy to create front-facing tool positions for your active ATC tools. For example, you can keep your full tool library across the rear of the machine, then move only the tools needed for the current job into your front tool stations.

The mount positions the magnetic tool cup vertically on the front extrusion, helping keep the spoilboard clear while making your active tools easy to see and verify.

Available Options

• 1-Pack: Great for adding or replacing a single front mount.

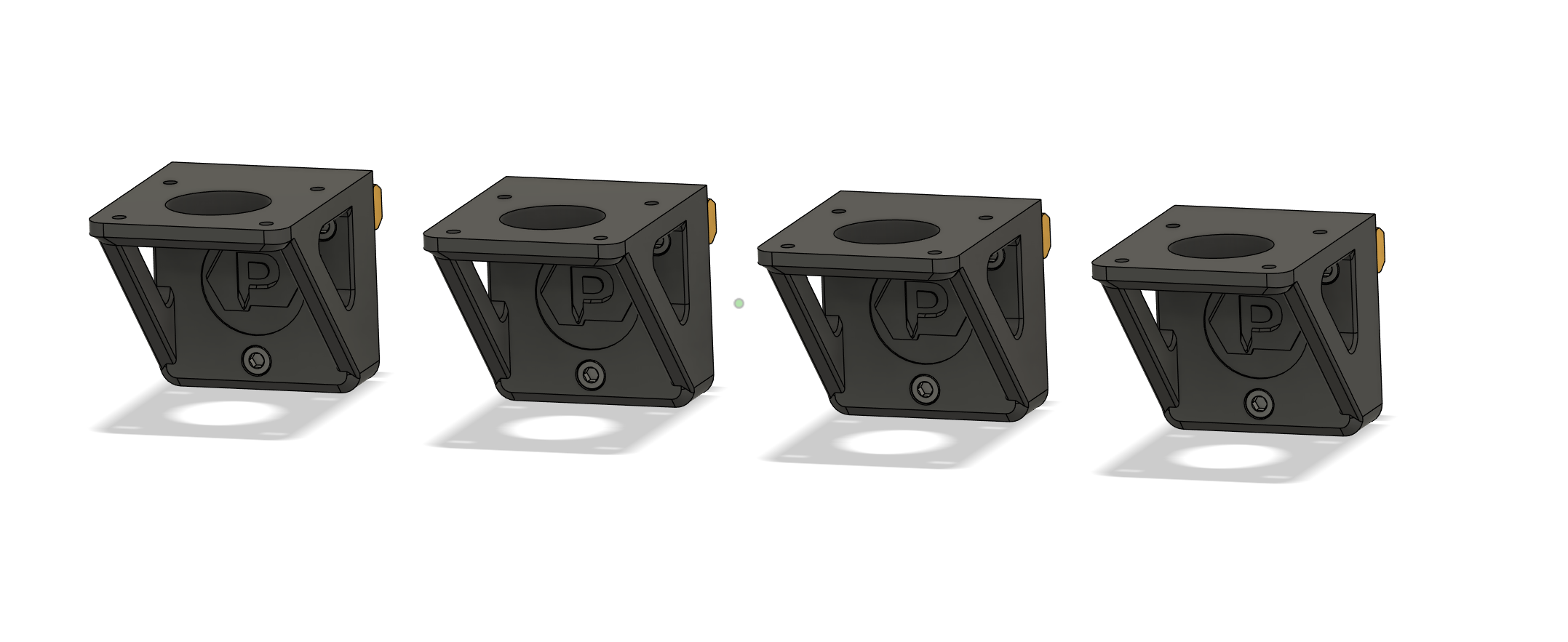

• 4-Pack: Recommended for creating a four-position front ATC station.

What’s Included

1-Pack includes:

• One 90° Front Mount
• Mounting hardware

4-Pack includes:

• Four 90° Front Mounts
• Mounting hardware

Compatibility

This product is designed for the PwnCNC Dominator Pro and our Magnetic Tool Cup system. It mounts to the front 40-series extrusion and is intended for ISO20 ATC tool storage workflows.

Other machines may require custom mounting, spacing, or controller configuration.

Important Notes

• This listing is for the 90° mount only.
• Magnetic Tool Cups are sold separately unless purchased as part of a kit.
• ISO20 tool holders, cutting tools, spindles, and CNC machines are sold separately.
• Your controller tool positions must be configured manually.
• Always test ATC pickup, drop-off, clearance, and Z height before running a carve.
• Dust boot, hose, and spindle clearance may vary by setup.
• This mount does not automatically configure Masso or any other controller.

Frequently Asked Questions

Are Magnetic Tool Cups included?
No. This product includes the 90° mount only. Magnetic Tool Cups are sold separately unless included in a bundle or kit.

What is the 4-Pack used for?
The 4-Pack is intended for creating a four-position front tool station on the Dominator Pro.

Does this work with the Numbered Magnetic Tool Cups?
Yes. This mount is designed to work with PwnCNC Magnetic Tool Cups, including the numbered versions.

Will this work on machines other than the Dominator Pro?
It was designed for the Dominator Pro’s front 40-series extrusion. Other machines may require custom mounting or testing.

Does this configure the ATC tool locations automatically?
No. The mount only provides the physical tool position. You still need to configure and verify your tool locations in your controller.

Can I use this without an ATC?
Yes, it can be used as a front-mounted tool holder location, but it is primarily designed around ISO20 ATC workflows.

Will it work with my dust boot?
Clearance depends on your dust boot, hose, spindle, and tool-change setup. Always verify clearance before running automatic tool changes.
