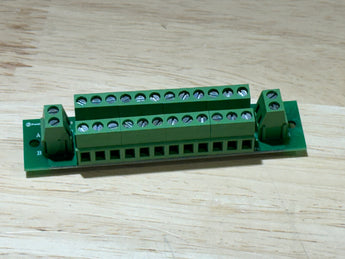

16 Amp 2x13 Position Terminal Block Distribution Module for AC DC
- 16Amp 48V 2x13 position screw terminal block distribution module. Support for multiple module extension connections.
- Rated current 16 Amp(total input or output), Maximum voltage 48V
- A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- CE certified terminal blocks, FR-4 glass fiber PCB.
