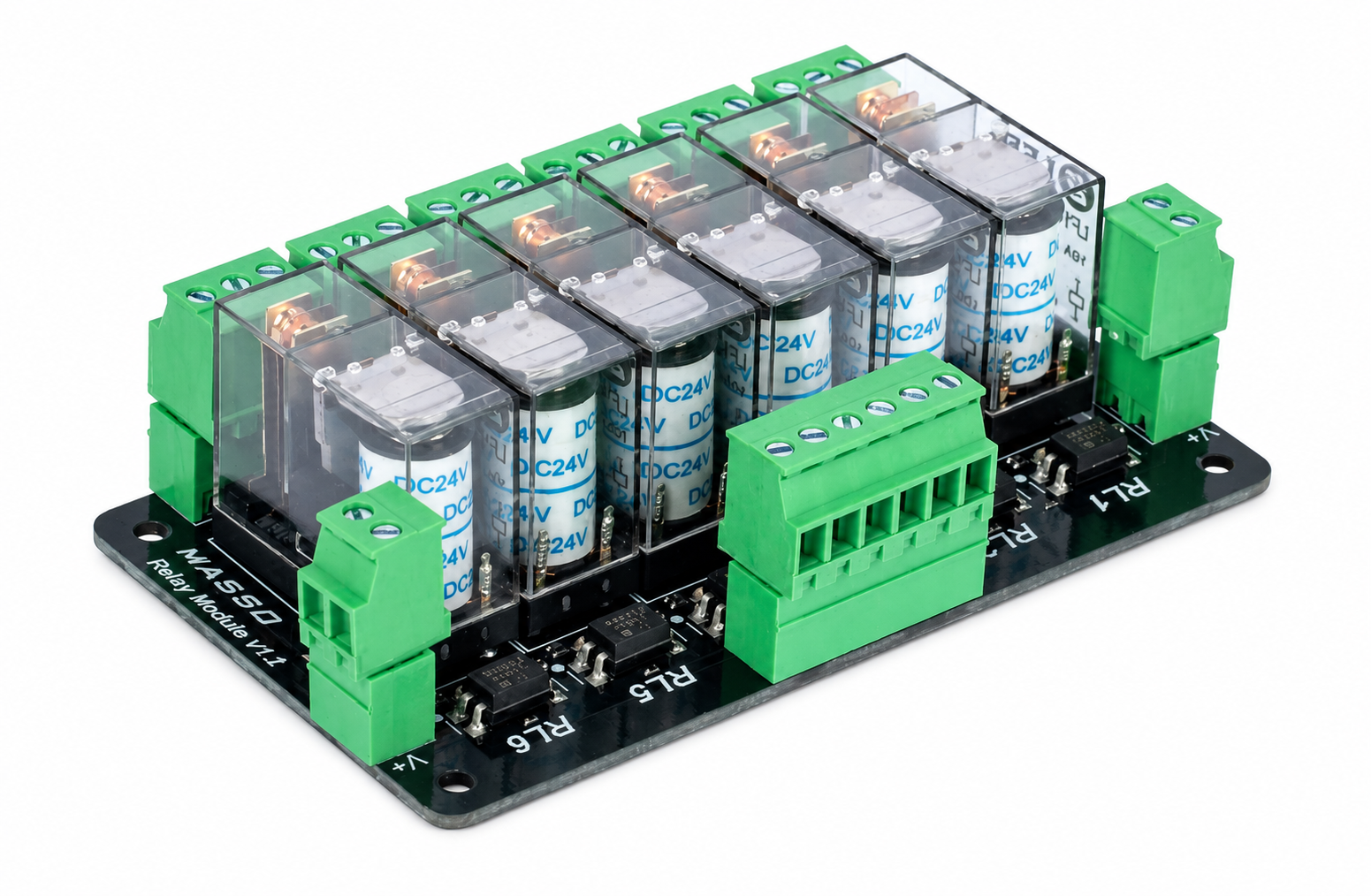

🔌 MASSO 6-Relay Module
Reliable Signal Control • Optical Isolation • Built-In Diagnostics
Take full control of your machine’s accessories with the MASSO 6-Relay Module, engineered for safe and efficient switching of high-voltage/current components. Designed specifically for use with the MASSO controller family, this compact and intelligent relay board features optical isolation for safety, multi-color LED status indicators, and support for both DC and AC loads—making it the ideal accessory interface.
✅ Key Features:
-
Optically Isolated
Protects your MASSO controller and other low-voltage components by safely isolating high-voltage signals. -
Advanced Diagnostics with Multi-Color LEDs
-
Green LED: Signal received and relay successfully switched.
-
Red LED: Signal received, but relay failed to activate—immediate visual cue for troubleshooting.
-
-
Flexible Power Handling
Each of the 6 relays can independently control up to:-
5 Amps @ 28VDC
-
5 Amps @ 240VAC
-
-
Single Power Source
Operates with a standard 24VDC power supply—no external transformers or converters needed. -
Compact & Mountable
Includes easy-mount M3 screw holes for quick, secure installation in your control enclosure or panel.
⚠️ Important Notes:
-
Reverse Polarity Warning: Connecting power in reverse will damage the module. Double-check wiring before applying power.
-
Compatible only with systems supplying 24VDC input power.
📦 What's Included:
-
(1) MASSO 6-Relay Module with integrated optical isolation
-
Built-in diagnostic LEDs on each relay channel
-
M3 mounting screw holes for enclosure integration
🛠️ Wiring & Setup Guide:
Click here to view detailed instructions
Whether you're switching dust collectors, coolant pumps, vacuum tables, or lighting systems, the MASSO 6-Relay Module offers a robust, easy-to-troubleshoot solution to automate your CNC accessories with total confidence.
