PwnCNC Automatic Tool Changer (ATC) System

Bring automatic tool changes to your CNC with a fully tested, plug-n-play ATC system from PwnCNC.

The PwnCNC Automatic Tool Changer (ATC) System is designed to reduce downtime, improve repeatability, and make multi-tool CNC projects easier to run. Each system is assembled, configured, and tested in-house before shipment so you receive a complete ATC spindle package built around your selected motor, voltage, cooling style, tool holder platform, and controller workflow.

Whether you are upgrading an existing CNC or building a high-performance setup from the start, the PwnCNC ATC System gives you a cleaner and more capable path into automated tool changes.

Built for Serious CNC Workflows

An Automatic Tool Changer is one of the most powerful upgrades you can add to a CNC machine. Instead of manually swapping bits between operations, an ATC allows supported controllers to unload one tool holder and pick up another from a configured tool location.

This helps streamline repeatable projects, production workflows, and jobs that require multiple cutting tools.

Air-Cooled and Water-Cooled Options

PwnCNC ATC Systems are available in both air-cooled and water-cooled configurations.

• Water-Cooled ISO20 ATC Motors: Round-body spindles that require a compatible 80mm spindle mount and water-cooling setup.
• Air-Cooled ISO20 ATC Motors: Square-body spindles that may require a machine-specific adapter plate.
• Air-Cooled ISO30 ATC Motors: Larger square-body spindles designed for higher-power ER32 tooling workflows. These require additional machine compatibility planning and are available as Full ATC Systems only.

Please confirm your machine’s mounting requirements before ordering. Some machines require additional brackets, adapter plates, or custom mounting solutions.

Spindle Options

• 1.5kW, 110V, ISO20, water-cooled, 80mm round body
• 1.5kW, 110V, ISO20, air-cooled, square body

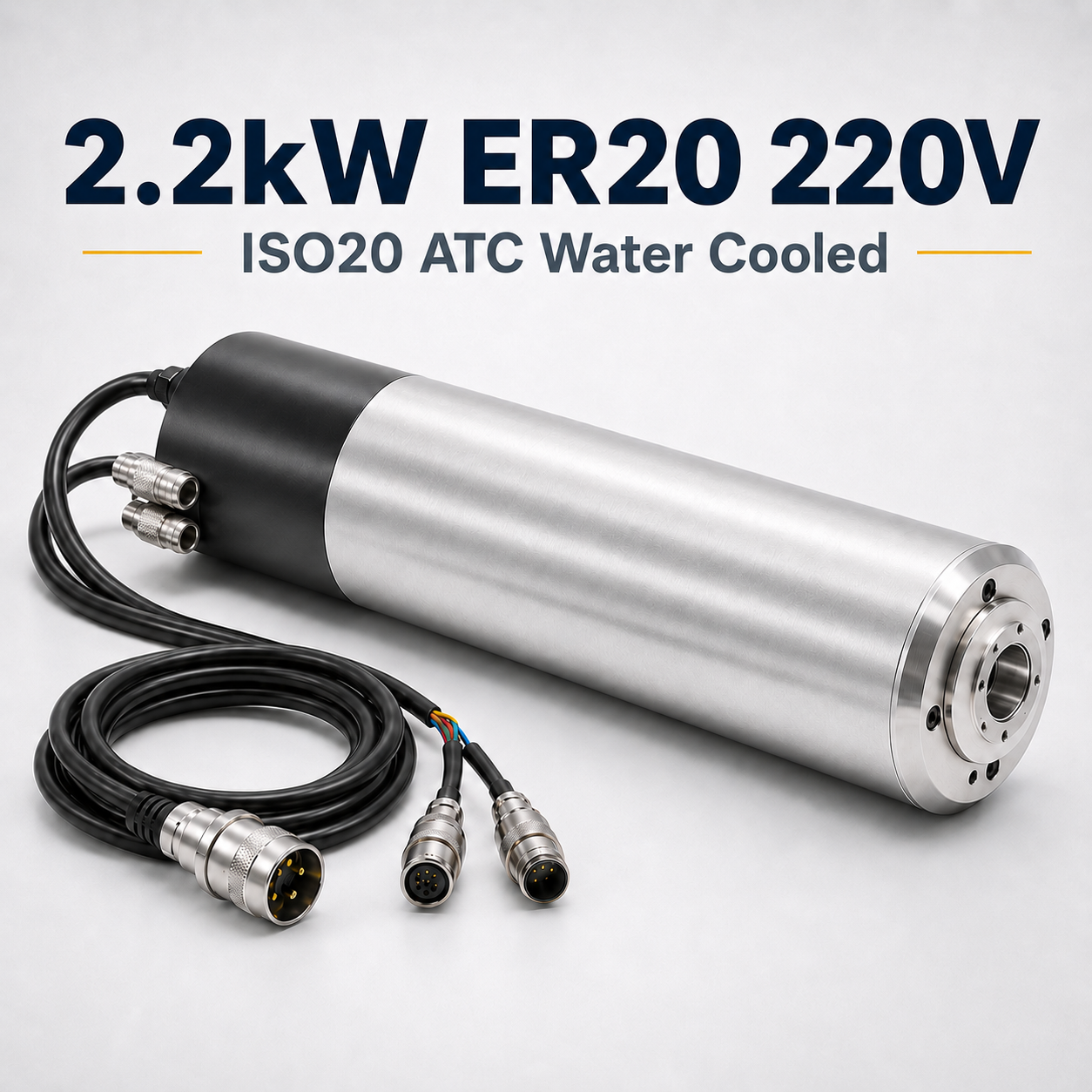

• 2.2kW, 220V, ISO20, water-cooled, 80mm round body

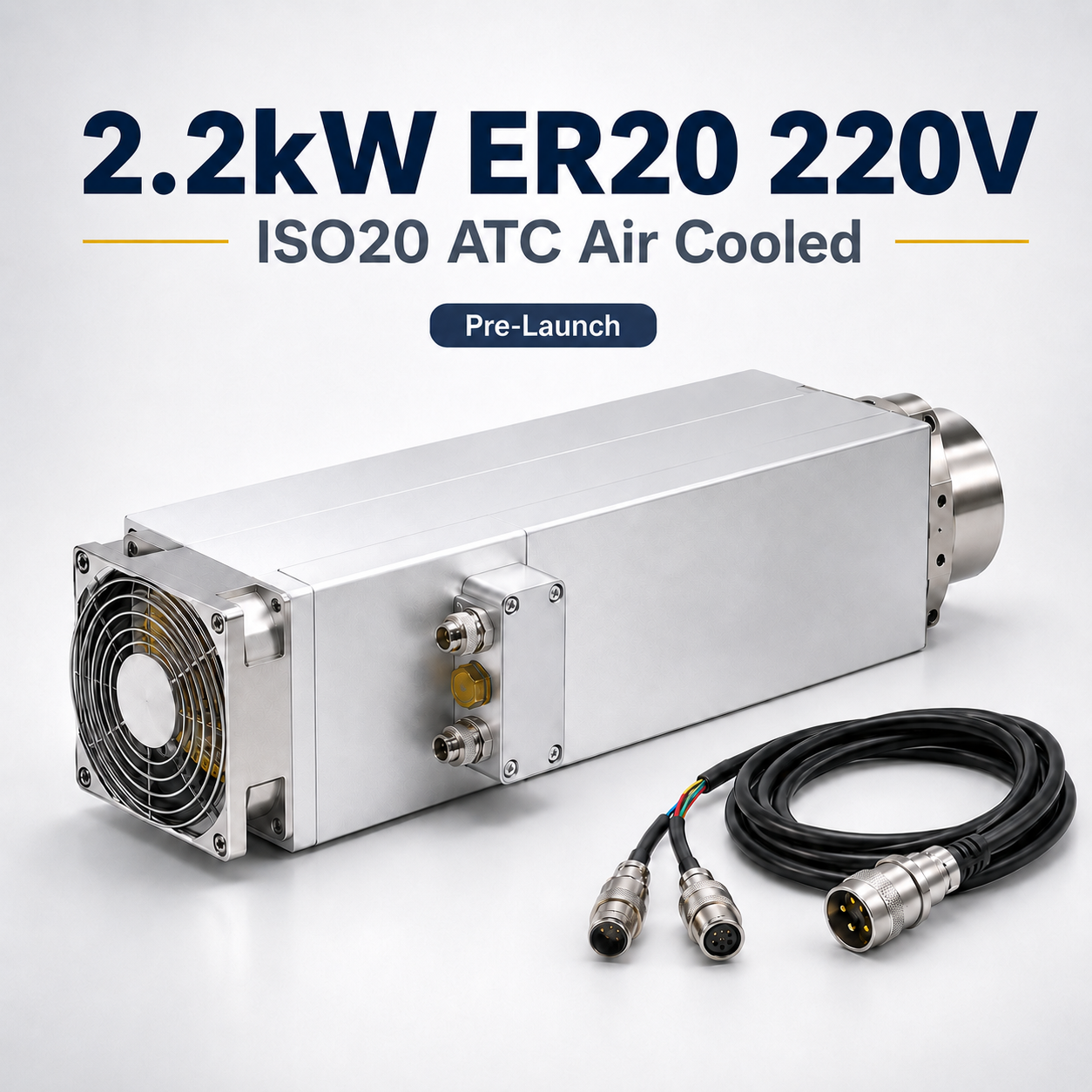

• 2.2kW, 220V, ISO20, air-cooled, square body
• 4.5kW, 220V, ISO30, air-cooled, square body

Pre-Launch Ordering Notice

Important: Some new air-cooled ATC configurations, including the 4.5kW ISO30 ATC System, are being offered as pre-launch ordering options. These systems are not currently in stock and are not ready-to-ship items.

Orders placed during the pre-launch period help us secure incoming inventory with our vendor and prioritize production as components become available. We will work with our vendor to get these systems moving as quickly as possible, but shipment timing may vary based on vendor availability, incoming freight, configuration requirements, and current order volume.

If your build timeline is critical, please contact us before placing your order so we can confirm the latest expected availability.

ISO20 vs. ISO30 Tooling

Most PwnCNC ATC Systems are built around the ISO20 tool holder platform. ISO20 is compact, practical, and well suited for many hobby and small-shop CNC workflows using ER20 collets.

The 4.5kW air-cooled ATC System uses the larger ISO30 tool holder platform. ISO30 tool holders support ER32 collets, giving customers access to larger tooling options and a more powerful spindle platform.

• ISO20 systems: Use ISO20 tool holders with ER20 collets.
• ISO30 4.5kW system: Uses ISO30 tool holders capable of ER32 collets.

Technical Highlights

• ISO20 tool holder interface on 1.5kW and 2.2kW ATC systems
• ISO30 tool holder interface on the 4.5kW ATC system
• ER20 collet compatibility through ISO20 tool holders
• ER32 collet compatibility through ISO30 tool holders on the 4.5kW system
• Up to 24,000 RPM on supported configurations
• Quiet operation compared to trim router setups
• 1.5kW models draw approximately 12A at 110V
• 2.2kW models draw approximately 10A at 220V
• 4.5kW models require 220V power and additional machine compatibility planning
• ATC spindle runout less than 0.01mm on supported ATC motors
• Kool Connectors included with Water-Cooled ATC Systems
• Designed for supported automatic or manual ATC workflows

What Sets PwnCNC’s ATC System Apart?

• Built and tested in-house: Every ATC system is assembled and verified before shipment.
• Plug-n-play-focused design: Pre-wired, pre-configured, and designed to simplify installation.
• Shielded cabling: Helps reduce electrical interference when grounded and installed correctly.
• Enclosed VFD system: High-voltage wiring is housed inside the included VFD enclosure.
• Controller flexibility: Supports automatic operation with compatible controllers and manual operation for simpler setups.
• Expanding tooling ecosystem: Choose from ISO20 ATC systems for ER20 tooling or the larger 4.5kW ISO30 system for ER32 tooling.

Automatic and Manual Operation

With supported controllers, such as Masso, the ATC System can perform fully automatic tool changes using configured tool positions.

For simpler controllers, manual or push-button assisted tool changes may still be possible depending on the selected configuration. Some controller types require manual operation, additional wiring, or custom setup steps.

Built-to-Order Lead Time

All PwnCNC ATC Systems are built to order. Each system is assembled, wired, configured, tested, and verified in-house before shipment.

Typical lead time is 1–2 weeks before shipment for standard in-stock configurations. Lead time depends primarily on ATC motor availability, current order volume, and the configuration selected at checkout; lead time may extend to 4–6 weeks.

Pre-launch ATC configurations: New air-cooled ATC options, including the 4.5kW ISO30 ATC System, are pre-launch ordering items and are not currently in stock. Orders placed for these configurations will be fulfilled once inventory is secured from our vendor, received, assembled, configured, and tested by PwnCNC.

We will work with our vendor to get pre-launch systems on the way as quickly as possible, but estimated ship dates may change based on vendor availability, freight timing, and production scheduling.

If timing is critical for your build, please contact us before placing your order so we can confirm the latest availability and expected lead time.

What’s Included

Your ATC System is built based on the options selected during checkout. Depending on your configuration, the system may include:

• Selected ATC spindle motor
• Pre-programmed VFD installed in a PwnCNC enclosure
  * 4.5kw VFD is NOT enclosed
• Shielded spindle cable
• Power cord matched to selected voltage
• Controller-specific wiring or control components based on selected options
• Cooling components for water-cooled configurations
• Required ATC control components included with your selected configuration
• Four Flush Mount Tool Cups for ISO20 tool holders on supported ISO20 systems
• ISO20 tooling components on ISO20 systems, depending on selected options
• ISO30 tooling components on the 4.5kW system, depending on selected options

Because this is a configurable bundle, the exact included parts depend on your checkout selections.

4.5kW ISO30 System Includes ER32 Collet Coverage

The 4.5kW ISO30 ATC System is built around ISO30 tool holders capable of using ER32 collets. Since ER32 tooling is a larger platform than our standard ISO20 ER20 setup, 4.5kW systems include a broad ER32 collet assortment to help customers get started right away.

• ISO30 ATC spindle motor
• ISO30 tool holder platform
• ER32 collet compatibility
• Twenty-one common-size ER32 collets included with the 4.5kW system

Pre-launch availability: The Air-Cooled ATC Systems are a pre-launch ordering item. We do not currently have these systems in stock. Your order reserves a place in our production queue while we work with our vendor to secure and receive the required components.

Important: The 4.5kW ISO30 ATC option is available as a full ATC System only. There is no 4.5kW ATC Upgrade package.

Important Bundler Product Note

This is a configurable bundle product. You will answer setup questions during checkout, and the appropriate parts will be added to your cart based on those selections.

Do not manually remove bundle components from your cart. If you remove items from the cart, those items will not ship, even if they were part of your original configuration.

Upgrading from a PwnCNC Spindle System?

Verified PwnCNC Spindle System owners may qualify for our ATC Upgrade Program. The upgrade package includes the ATC-specific components needed to move from a Spindle System to an ATC System, excluding components you may already own, such as the VFD and spindle cable. A VFD upgrade may be required depending on your existing system.

Upgrade availability note: ATC Upgrade packages are intended for supported ISO20 ATC configurations. The 4.5kW ISO30 ATC option is not available as an upgrade package and must be purchased as a complete ATC System.

Compatibility

The PwnCNC ATC System is designed for hobby and small-shop CNC machines when configured correctly. Compatibility depends on your CNC machine, controller, spindle mount, available clearance, pneumatic setup, and selected ATC motor style.

ISO20 systems are generally the most practical ATC path for many smaller CNC platforms. The larger 4.5kW ISO30 system requires additional planning for machine rigidity, mounting, clearance, electrical service, tool storage, and overall machine compatibility.

Please review our ATC planning guide, compatibility information, and machine-specific installation instructions before ordering.

What’s Not Included

• Extra ISO20 or ISO30 tool holders unless specifically selected or bundled
• Additional tool racks, forks, or tool cups beyond what is listed
• Cutting tools
• Machine-specific mounting plates unless selected or included
• Air compressor or shop air source
• Coolant liquid or coolant reservoir for water-cooled configurations
• Custom controller integration beyond documented supported workflows

Important Notes

• ATC systems require proper planning, installation, calibration, and controller setup.
• Tool change positions must be configured and verified before running automatic tool changes.
• Air-cooled square-body ATC motors may require a machine-specific adapter plate.
• Water-cooled 80mm ATC motors require a compatible 80mm spindle mount.
• New air-cooled ATC configurations, including the 4.5kW ISO30 ATC System, may be pre-launch ordering items and may not be in stock at the time of purchase.
• The 4.5kW ISO30 ATC System is larger and more powerful than the ISO20 options and may not be compatible with every CNC machine.
• The 4.5kW ISO30 ATC System is only available as a complete ATC System, not as an ATC Upgrade package.
• Shielded cables must be grounded properly for best EMI performance.
• Support for non-PwnCNC controllers or third-party CNC machines may be limited by the controller or machine manufacturer’s documentation.
• Because ATC Systems are custom-built, cancellations after procurement of major components may be subject to a restocking fee.

Recommended Add-Ons

• ISO20 tool holders for ISO20 ATC systems
• ISO20 tool forks or tool cups
• ISO30 tool holders for 4.5kW ISO30 ATC systems
• ER32 collets and accessories for ISO30 tooling workflows
• Dominator Pro ATC Workflow Bundle
• Cyclone Bits
• High-precision ER20 collets
• Dust collection accessories
