Omron Optical Limit Switch

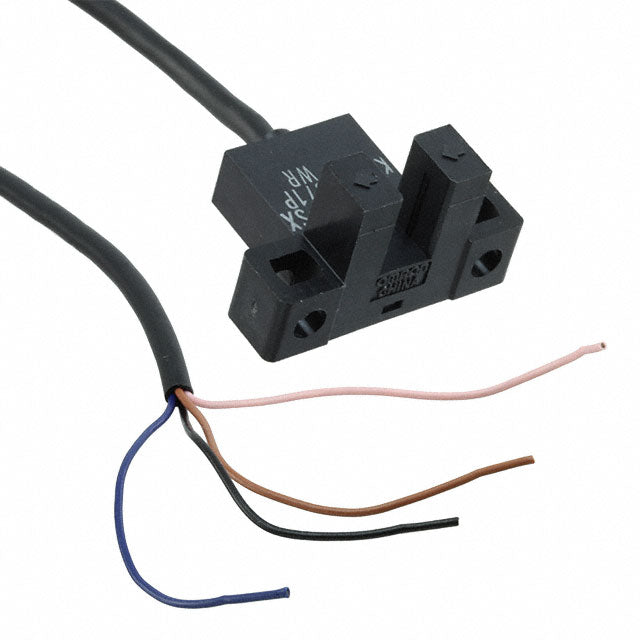

This Optical Homing Sensor uses the genuine OMRON EE-SX671P-WR 1M slot-type photo micro sensor for reliable, repeatable CNC homing and position sensing.

This L-shaped, through-beam sensor detects an interrupting tab or flag as it passes through the 5 mm sensing slot. Light-ON and Dark-ON operation can be selected to match the machine control system and wiring requirements.

Key Features

• OMRON EE-SX671P-WR 1M photo micro sensor
• Through-beam sensing with a 5 mm slot
• PNP output
• Light-ON and Dark-ON operation selectable
• 5–24V DC supply voltage
• 0.17 ms response time
• 1-meter robotic cable
• L-shaped housing for convenient machine installation
• Infrared light source
• Durable PBT housing

Product Specifications

• Manufacturer: OMRON
• Model: EE-SX671P-WR 1M
• Sensing method: Through-beam with slot
• Sensing distance: 5 mm
• Output type: PNP
• Operation modes: Light-ON and Dark-ON
• Supply voltage: 5–24V DC
• Response time: 0.17 ms
• Cable length: 5 meter
• Housing material: PBT
• Approximate dimensions: 26.2 mm wide × 20.7 mm high × 15.5 mm deep

What’s Included

• 1 Optical Homing Sensor using the OMRON EE-SX671P-WR 1M
• 1 pre-attached 1-meter robotic cable

Mounting hardware is not included.

Compatibility and Installation

This sensor provides a PNP output and operates from a 5–24V DC supply. Confirm that your CNC controller accepts PNP inputs and is compatible with the sensor’s voltage, output configuration, wiring, and selectable Light-ON/Dark-ON operation before installation.

The installer is responsible for proper mounting, alignment, wiring, and machine configuration. Always verify the wiring and controller requirements before applying power.
